The XS1 will be installed by an OxeFit technician. The installation process includes delivery, placement of the device in your desired location, and initial setup.

Our white-glove delivery service will deliver a fully assembled XS1 device to your home or fitness space. No assembly installation or wall mounting is required. The installers will remove the XS1 from the shipping container, plug the device into your standard outlet, and complete the initial setup.

SETTING UP

UNFOLDING THE DECK

1. Ensure no one is near the device, especially children and pets.
2. Unbuckle the straps at the front of the device.

Figure 01

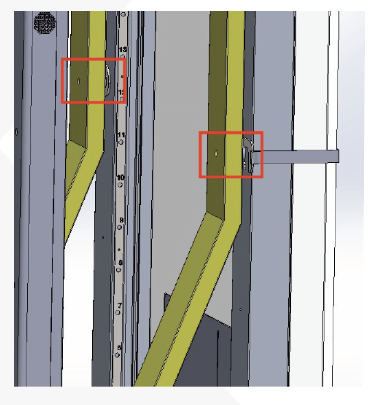

3. Unhook both ends of the deck straps from the latches located in between the rear support beam of the XS1.

Figure 02

4. Lower the deck using the deck handle located at the top of the deck.

FOLDING THE DECK (OPTIONAL)

You have the option to fold the deck after use to save space. WARNING: The system must be powered on and the cables must have maintenance tension.

1. Disconnect all accessories from the device and remove the bench from the deck.
2. Ensure weight is unloaded, then raise both slide handles to their highest position.
3. Close the deck connection covers.
4. Ensure no one is near the device, especially children and pets.
5. Use the deck handle to lift the deck to the up position.
6. Hook both ends of the deck straps to the latches located in between the rear support beams of the XS1 (see Figure 03).
7. After the deck is folded up against the device, buckle the straps together at the front of the device (see Figure 04).

                                                  Figure 03                                                                                                         Figure 04

STABILIZER LEGS

Two stabilizer legs located under the deck of the XS1 will be visible once the deck is folded up. The stabilizer legs are to remain in place after installation. WARNING: DO NOT remove or adjust the stabilizer legs. Keep both stabilizer legs fully extended at all times.
