For Single & Dual Cable Modality

The Vertical Light Strips will use different patterns to display cable-readiness feedback when a SINGLE CABLE or DUAL CABLE exercise is selected.

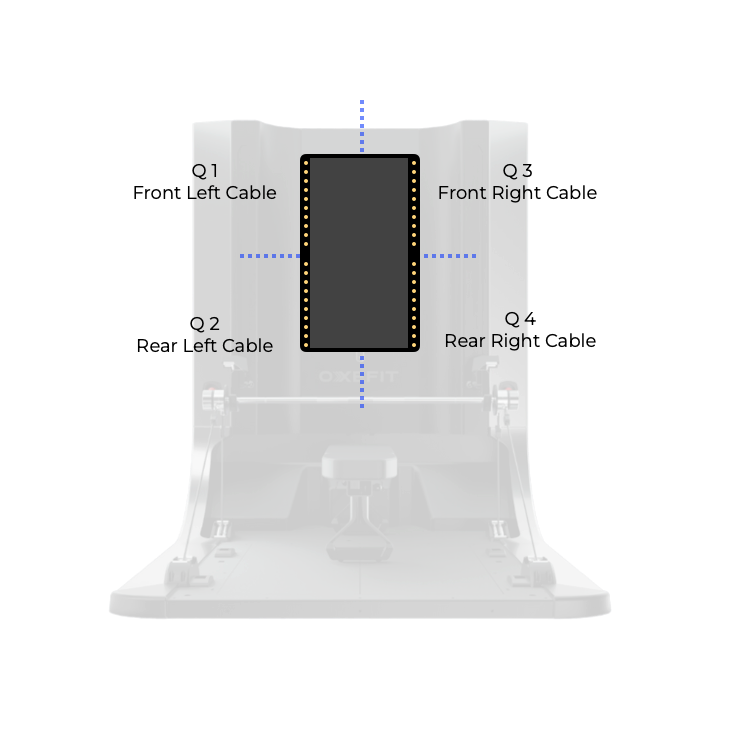

To communicate which cables are in the proper position for loading, the light strips will use 4 quadrants corresponding to each of the 4 cables.

Pulsing Light––indicates cable(s) ready for use.

Light Moving Up & Down––Indicates non-available cable.

A moving light traveling up & down will occupy the quadrant space of any non-available cable. If a moving light traveling up & down is the only pattern spanning both sides (no pulsing light in any of the quadrants), NONE of the cables are readily set up for loading and the exercise cannot proceed until corrected.

Free up occupied cables so that they fully retract into the deck, and the quadrant’s light pattern will change to reflect readiness.
