In the event that you need to relocate an XS1 device, whether it be within its current premises or transporting it to a new premises, please review the information in this article carefully and follow all instructions. Ensure preparations are in place before you begin the move.

Moving an XS1

Approved

1. Always use protective equipment, such as:

a. Gloves

b. Moving Blankets

c. Moving straps

d. Cardboard

2. Always support machine from the frame.

a. Deck Side

b. Slide Towers

c. Stationary frame

3. Always measure clearance.

a. Stair cases

b. Door Frames

c. Hallways

d. Turns

e. Bulkheads

f. Ceilings

4. Always use more than one person.

a. Machine is about 400 pounds

b. Certain installs may require 2-4 people

5. Approved moving equipment:

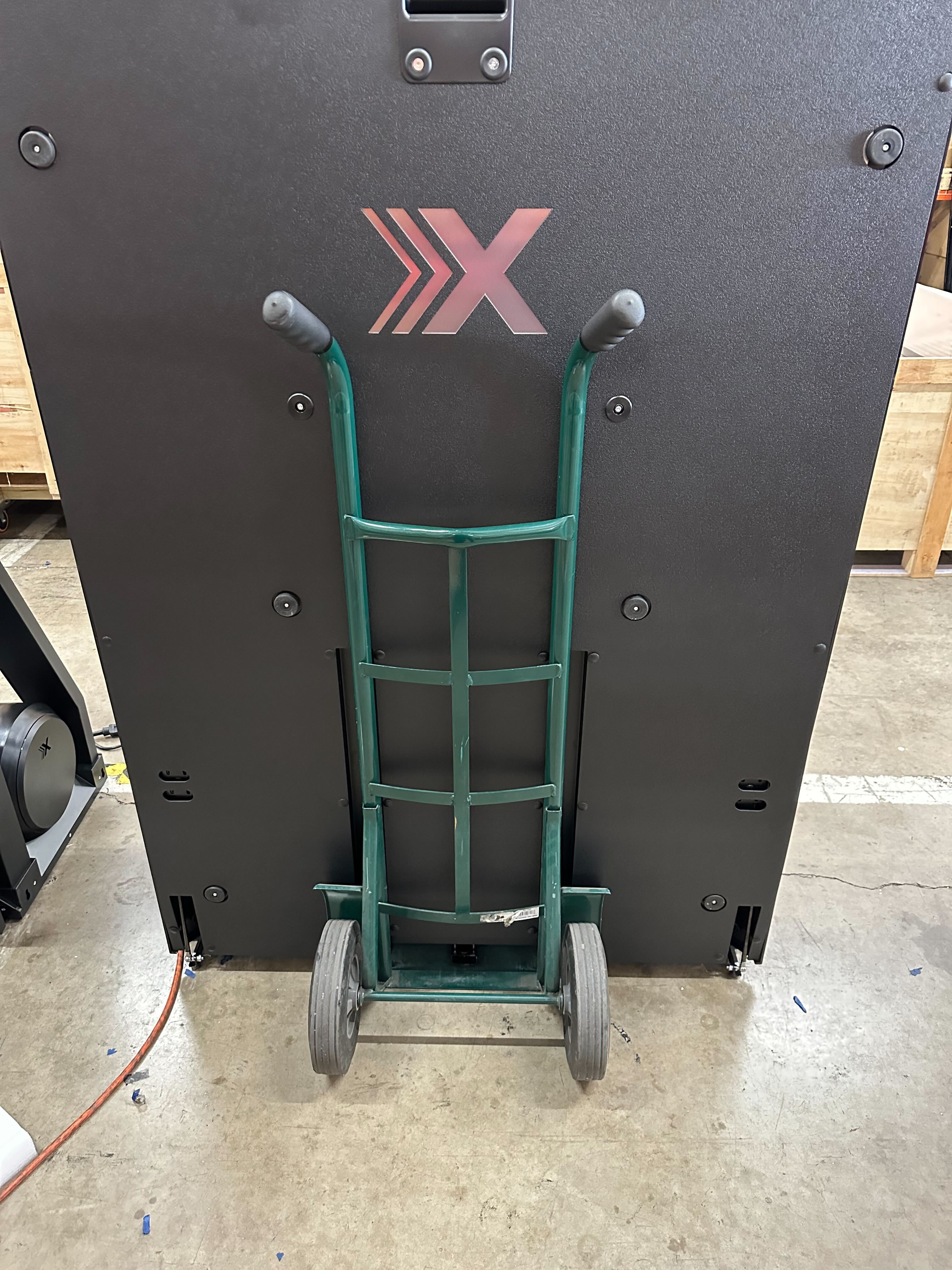

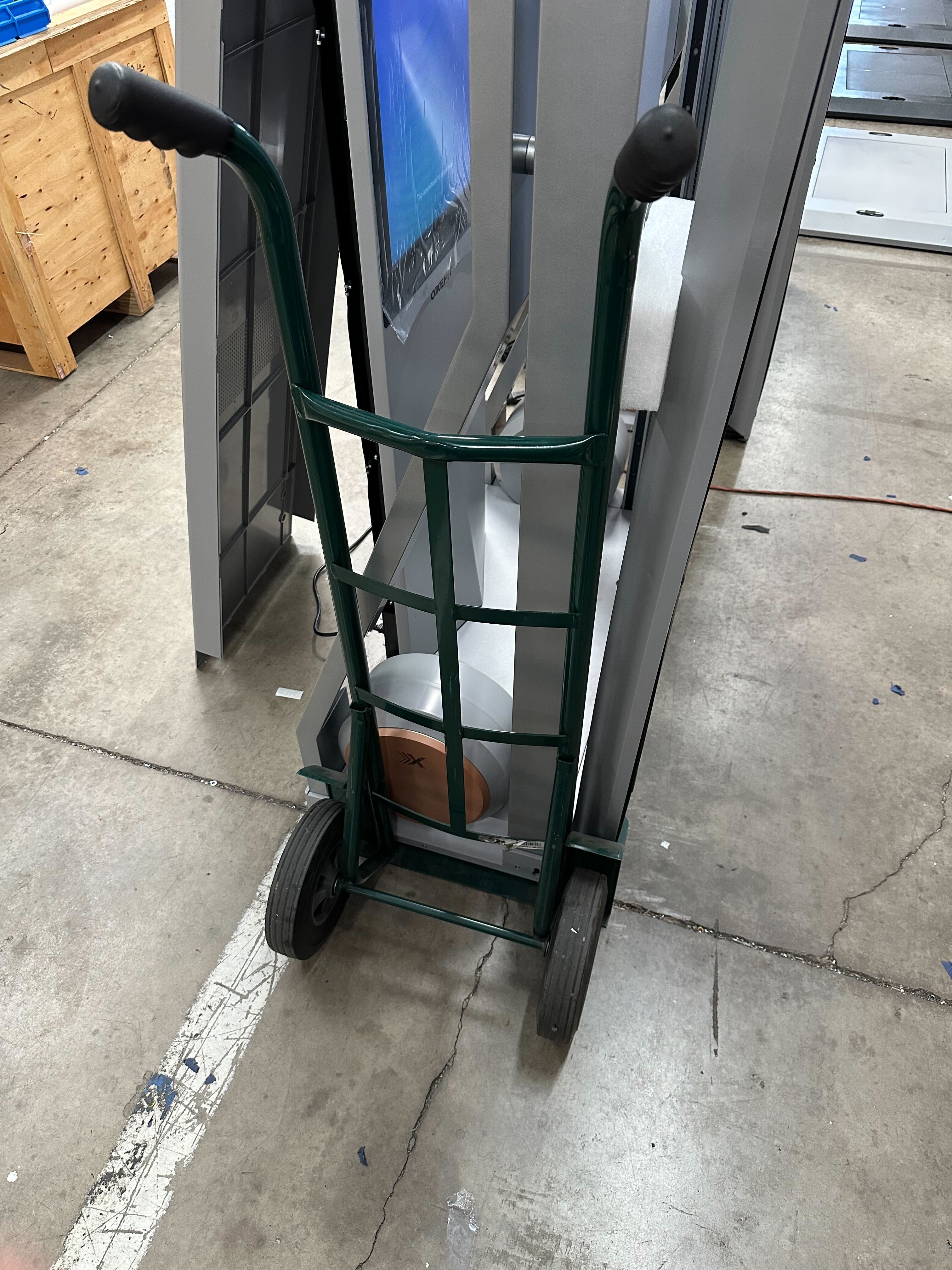

a. Hand Truck

b. Furniture dolly

c. Cardboard

d. Furniture Pads/blankets

6. Always double-check:

a. Machine accessories

b. Stabilization bars are installed

c. Top caps are installed

d. Deck recessed screws are removed

e. Connects to Wifi

f. Machine Pre-tension

g. Double Check Serial number

7. Always unbox and remove all trash.

8. Always notify OxeFit of machine damages.

Avoidances

1. Never Grab the XS1 by screen or kiosk side.

2. Never try to drag the XS1.

a. There five rubber feet that won’t allow the machine to slide unless on blankets or

cardboard.

3. Never try to disassemble the XS1.

4. Never use machine without stabilizing bars installed.

5. Never walk backwards downhill with machine.

6. Never over-tighten machine in truck.

Further questions about moving a device? Please contact support@oxefit.com
